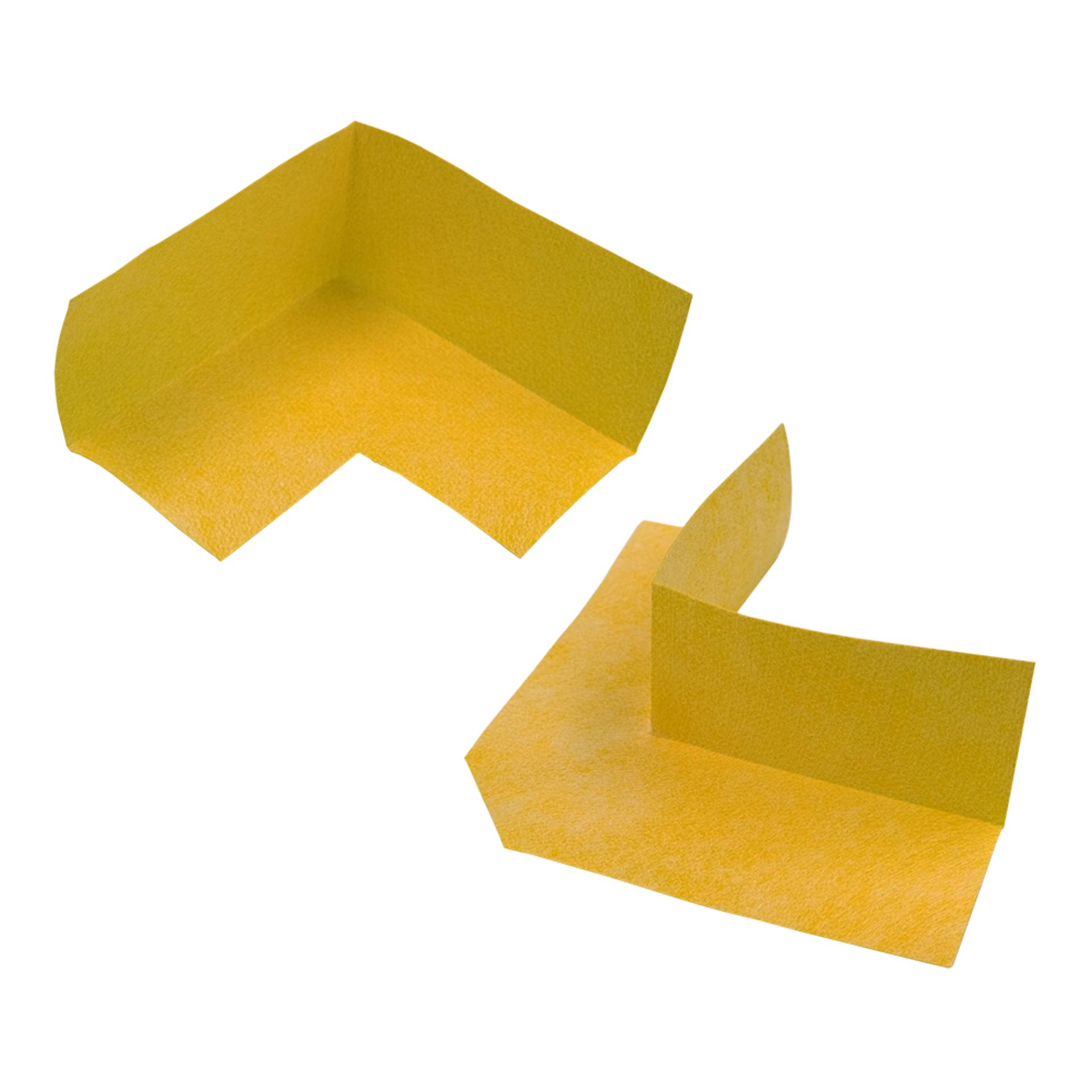

Corner Tissue Lite
Pre-fabricated, dimensionally stable internal and external corners made from coated, transversely stretchable and longitudinally stable polypropylene non-woven fabric.
Pre-fabricated, dimensionally stable internal and external corners made from coated, transversely stretchable and longitudinally stable polypropylene non-woven fabric.
- Easy to work with
- Waterproof, alkali-resistant and puncture-resistant
- For flexible joint sealing in combination with tiles and slabs; suitable for water exposure classes in accordance with DIN 18534 W0-I-W2-I or ÖNORM B 3407 W1-W4
Application areas
Choose Corner Tissue Lite for
- For indoor use between wall and floor coverings.
- For embedding with the Aquatech Neo and Flexistar Rapid waterproofing membranes.
- For forming corner joints and floor-to-wall connections when used with the Mat 1000 mm – 30 m waterproofing membrane or the Bridge Mat waterproofing and decoupling membrane.
Discover more
Other solutions you might be interested in
Details
Pre-fabricated, dimensionally stable internal and external corners made from coated, transversely stretchable and longitudinally stable polypropylene non-woven fabric.
Instructions for use
Place the corner mouldings into the fresh waterproofing layer. Then apply the waterproofing over the entire surface of the edges and joints, pressing it down with a smoothing trowel or a paint roller handle and smoothing it out so that no air pockets remain beneath the moulding.
The system corners can be bonded using the sealing slurries Torggler Flexistar Rapid or Aquatech Neo, as well as the tile adhesives Tile 2020, Tile 480 and Tile 250.
Storage
Store at +20 °C to +30 °C with a maximum relative humidity of 65 per cent. Keep dry in the original packaging.
| Code | Detail | Packaging size | Barcode |
|---|---|---|---|
| 15637 | 270° | 25 piece |
|
| 15636 | 90° | 25 piece |
|
Corner Tissue Lite For flexible corner sealing in combination with tiles and slabs.
- For indoor use between wall and floor coverings.
- For embedding with the Aquatech Neo and Flexistar Rapid waterproofing membranes.
- For forming corner joints and floor-to-wall connections when used with the Mat 1000 mm – 30 m waterproofing membrane or the Bridge Mat waterproofing and decoupling membrane.
| Parameters and test procedures | Values |
| Description | Yellow system corners, made of thermoplastic elastomer, alkali-resistant, coated on both sides with polyolefin non-woven fabric |
| Total thickness | 0.5 mm -5 % +10 % |
| Operating temperature min./max. | -30°C / +90°C |
| Burst pressure | 2 bar |
| Tensile strength in the longitudinal direction, DIN 527-3 | 85 N / 15 mm ± 10 % |
| Lateral breaking load to DIN 527-3 | 70 N / 15 mm ± 10 % |
| Elongation at break in the longitudinal direction DIN 527-3 | 110 % ± 10 % |
| Lateral elongation at break DIN 527-3 | 110 % ± 10 % |
| SD value DIN EN 1931 | 90 m ± 10 % |
