Areas not exposed to humidity

Areas with limited or no exposure to moisture are classified W0-I according to DIN 18534. For this type of application or stress, it is not necessary to use a waterproofing under the tile or natural stone to protect the substrate. When laying the top layer, however, the differences between non-problematic and sensitive coverings must be taken into account. Given the low problematic nature of tiles, the choice of laying adhesive for this type of caddeling depends largely on the size of the tile. In most cases, natural stone have much higher requirements. For example, for translucent or moisture-sensitive natural stone, quick-hardening white adhesive mortars are preferred. In addition, each grout must be matched to the respective tiles.

1
2
3
4
5
6
7

1. Pretreatment



Tile Primer

A pre-treatment designed to improve adhesion, absorption and insulation for the installation of tiles on gypsum, anhydrite and cement-based substrates.
EC1plus_(GB)_black_

2. Floor levelling or screed

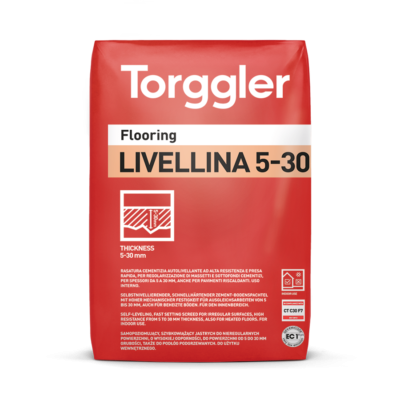

Livellina 5-30

Self-levelling screed for irregular surfaces, from 5 to 30 mm thickness, also for heated floors.
EC1plus_(GB)_black_ CTC30F7_EN13813 EPD_Torggler

3. Wall levelling



Multimix Evo

A ready-mixed, fibre-reinforced, fast-setting mortar for restoration, repair and levelling work on both façades and floors, in thicknesses ranging from 3 to 50 mm. Good adhesion and excellent workability. Suitable for both manual and machine application.
EC1plus_(GB)_black_ GPCSIVW2_EN998-1 CTC20F5_EN13813 EPD_Torggler

4. Pretreatment



Tile Primer

A pre-treatment designed to improve adhesion, absorption and insulation for the installation of tiles on gypsum, anhydrite and cement-based substrates.
EC1plus_(GB)_black_

5. Flexible adhesive



Tile 480

Improved, single-component, high-strength, powder-based cementitious adhesive with extended open time and deformability, class C2 TE S1, in accordance with EN 12004. Suitable for bonding, both indoors and outdoors, on walls and floors, including over existing tiles, of porcelain stoneware, glazed tiles and all types of ceramic tiles (except thin slabs) and sizes (longest side up to 120 cm). Frost-resistant.
EC1plus_(GB)_black_ C2TES1_EN12004 Torggler Flexmörtel IMO MED EPD_Torggler
Alternative solution

Tile 250

Improved, single-component, low-slump, powder-based cementitious adhesive with extended open time, made flexible, class C2 TE in accordance with EN 12004. Suitable for bonding medium-sized porcelain and glazed tiles indoors and outdoors, on walls and floors. Frost-resistant.
EC1plus_(GB)_black_ C2TE_EN12004 IMO MED EPD_Torggler

6. Adhesive for natural stones



Tile 2020

Highly deformable, quick-setting, lightened cementitious adhesive for tiles, porcelain stoneware, stones and large marble.
EC1plus_(GB)_black_ C2FES2_EN12004 Torggler Flexmörtel EPD_Torggler
Alternative solution

Tile 700

Improved one-component cementitious adhesive type C2 E S1 according to EN 12004, quick setting and hardening, highly flexible and high strength, for gluing wall, floor and paving slabs or blocks of marble or natural stone and ceramic tiles of all kinds. Can be used indoors and outdoors. Frost resistant.
EC1plus_(GB)_black_ C2ES1_EN12004 Torggler Flexmörtel EPD_Torggler

7. Tile grout



Tile Grout 2-15 mm

Cement based powder grout, single component, fl exible and waterproof, classifi ed as CG2 WA in compliance with EN 13888, for fi lling joints 2 to 15 mm wide.
EC1plus_(GB)_black_ CG 2 WA_EN13888 EPD_Torggler
