Bathroom with moderate exposure to humidity: Flexible mortar

Bathrooms without shower tray classified as W2-I or W3-I according to DIN 18534 are increasingly in vogue, both in existing buildings and in new constructions, so that they dictate the new design standard for contemporary bathrooms. This applies in particular to public showers in sports facilities or workplaces. Owners generally want the floor tiling to continue into the shower area. With this solution, water is drained exclusively through the tiles and therefore the underlying waterproofing layer, which can be created with a flexible mineral mortar, is of high importance.

1
2
3
4
5
6
6
6
7
8
9
10
11

1. Pretreatment

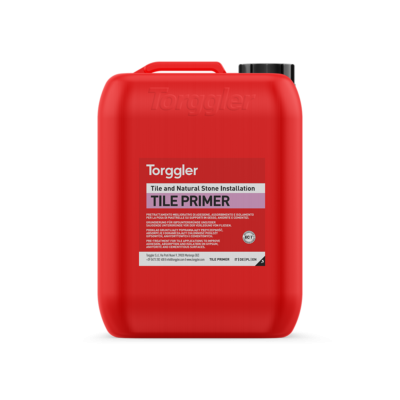

Tile Primer

A pre-treatment designed to improve adhesion, absorption and insulation for the installation of tiles on gypsum, anhydrite and cement-based substrates.
EC1plus_(GB)_black_

2. Screed



Fast Screed

Pre-mixed cementitious mortar with semi-rapid setting and drying, class CT C25 F4 according to EN 13813, for the construction of bonded, self-supporting, floating and heated screeds, both indoors and outdoors.
CTC25F4_EN13813 EPD_Torggler
Alternative solution

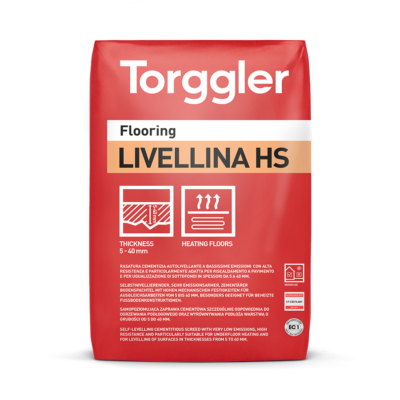

Livellina HS

Self-levelling cementitious screed, specifically designed for underfloor heating systems bonded to the substrate, for levelling cementitious screeds and substrates, for thicknesses ranging from 5 to 40 mm.
EC1plus_(GB)_black_ EPD_Torggler CTC25F6AR0_5_EN13813

3. Wall levelling



Multimix Evo

A ready-mixed, fibre-reinforced, fast-setting mortar for restoration, repair and levelling work on both façades and floors, in thicknesses ranging from 3 to 50 mm. Good adhesion and excellent workability. Suitable for both manual and machine application.
EC1plus_(GB)_black_ GPCSIVW2_EN998-1 CTC20F5_EN13813 EPD_Torggler

4. Wall levelling with heating system



R.E.D.

Pre-mixed fibre-reinforced mortar/plaster for regularisation, levelling and restoration work from 3 to 40 mm. Skim plaster for façade renovation with very high adhesion power and excellent workability, type GP CSII Wc0, according to EN 998-1, for restoration and levelling work, for thickness from 3 to 40 mm. For manual and machine applications.
EC1plus_(GB)_black_ GPCSIIWc0 – EN998-1 EPD_Torggler

5. First coat with waterproofing mortar



Flex 2K

Two-component, flexible, fibre-reinforced, waterproofing cementbased mortar, which can be reinforced with fibreglass mesh, for flexible waterproofing and protective smoothing of cementitious substrates. Good UV resistance, elastic to -20 °C.
CPIMCIR_EN1504-2 CM02P_EN14891 Übereinstimmungszeichen – caso 1
Alternative solution

Flexistar

Extra-flexible, single-component, fibre-reinforced cementitious polymer sheath for waterproofing and protecting concrete.
EC1_(GB)_black_ CPIMCIR_EN1504-2 CMP_EN14891 EPD_Torggler

6. Waterproofing tapes



PP Tape

Polypropylene reinforcement tape with side perforations.
EC1plus_(GB)_black_ Émissions dans l’air intérieur A+ Übereinstimmungszeichen – caso 3

7. Second coat with waterproofing mortar



Flex 2K

Two-component, flexible, fibre-reinforced, waterproofing cementbased mortar, which can be reinforced with fibreglass mesh, for flexible waterproofing and protective smoothing of cementitious substrates. Good UV resistance, elastic to -20 °C.
CPIMCIR_EN1504-2 CM02P_EN14891 Übereinstimmungszeichen – caso 1
Alternative solution

Flexistar

Extra-flexible, single-component, fibre-reinforced cementitious polymer sheath for waterproofing and protecting concrete.
EC1_(GB)_black_ CPIMCIR_EN1504-2 CMP_EN14891 EPD_Torggler

8. Tile adhesive



Tile 480

Improved, single-component, high-strength, powder-based cementitious adhesive with extended open time and deformability, class C2 TE S1, in accordance with EN 12004. Suitable for bonding, both indoors and outdoors, on walls and floors, including over existing tiles, of porcelain stoneware, glazed tiles and all types of ceramic tiles (except thin slabs) and sizes (longest side up to 120 cm). Frost-resistant.
EC1plus_(GB)_black_ C2TES1_EN12004 Torggler Flexmörtel IMO MED EPD_Torggler
Alternative solution

Tile 250

Improved, single-component, low-slump, powder-based cementitious adhesive with extended open time, made flexible, class C2 TE in accordance with EN 12004. Suitable for bonding medium-sized porcelain and glazed tiles indoors and outdoors, on walls and floors. Frost-resistant.
EC1plus_(GB)_black_ C2TE_EN12004 IMO MED EPD_Torggler

9. Grout



Tile Grout 2-15 mm

Cement based powder grout, single component, fl exible and waterproof, classifi ed as CG2 WA in compliance with EN 13888, for fi lling joints 2 to 15 mm wide.
EC1plus_(GB)_black_ CG 2 WA_EN13888 EPD_Torggler
Alternative solution

Tile Epoxy

Two-component epoxy mortar, class R2 T in accordance with EN 12004 and RG in accordance with EN 13888, for bonding and grouting ceramic tiles, ceramic and glass mosaics, marble and natural stone up to a thickness of 15 mm.
EC1plus_(GB)_black_ R2T – EN12004 RG – EN13888

10. Connection joint



Domus

A neutral, mould-resistant silicone sealant with a low modulus of elasticity.
EC1plus_(GB)_black_ PW-EXT_INT-CC F-EXT_INT-CC _25LM_EN15651_1 S1_EN15651-3 IMO MED EPD_Torggler
Alternative solution

Acetic Standard

Acetic silicone sealant, mould-resistant, for use on façades and glazing, indoors and outdoors, and in sanitary applications. Ideal for ceramic tiles.
EC1_(GB)_black_ XS1_EN15651-3 G-CC_20LM_EN15651-2 F-EXT_INT-CC_12-5E_EN15651-1
Alternative solution

Marble & Stone

Neutral silicone sealant with low elastic modulus, for use on marble and natural stone.
F-EXT:INT-CC EC1_(GB)_black_ XS1_EN15651-3 G-CC_20LM_EN15651-2 EPD_Torggler

11. Bonding shower enclosures



Hybrid HM

Single-component, hybrid polymer-based adhesive-sealant with anti mould agent for overpaintable elastic bonding and sealing of joints in construction and industry in general.
EC1plus_(GB)_black_ F-EXT_INT S EPD_Torggler
